Benchtop ED XRF
Elemental analysis by EDXRF allows you to measure and monitor elements in almost any sample type. Whether you are improving the quality of products or optimizing industrial processes, we understand getting quick, high-quality results while also managing costs is critical. Applied Rigaku Technologies provides advanced, high-quality EDXRF analyzers and offers customer-focused solutions and support backed by Rigaku innovation and years of EDXRF experience.

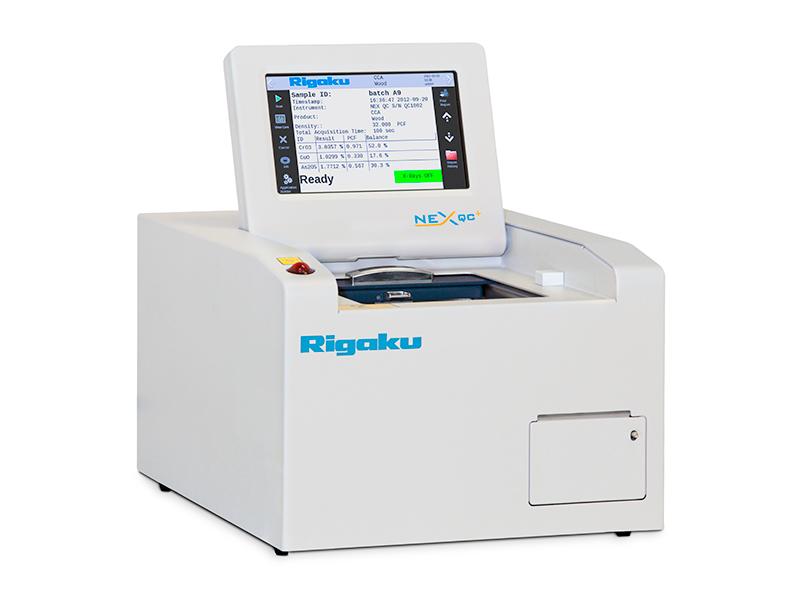

NEX QC / NEX QC+
Experience easy and affordable elemental analysis with the NEX QC analyzer — non-destructive analysis of sodium to uranium in almost any sample type. Compact, with touchscreen operation and built-in printer for on-site or space-limited testing. NEX QC+ adds a high-performance silicon drift detector (SDD) for improved resolution, counting statistics and reduced measurement times — ideal when faster analysis or higher throughput is required.
- Compact, space-saving — no external PC required
- Touchscreen with built-in printer
- Beginner-friendly icon-driven interface
- NEX QC+ adds SDD for faster, higher-resolution analysis

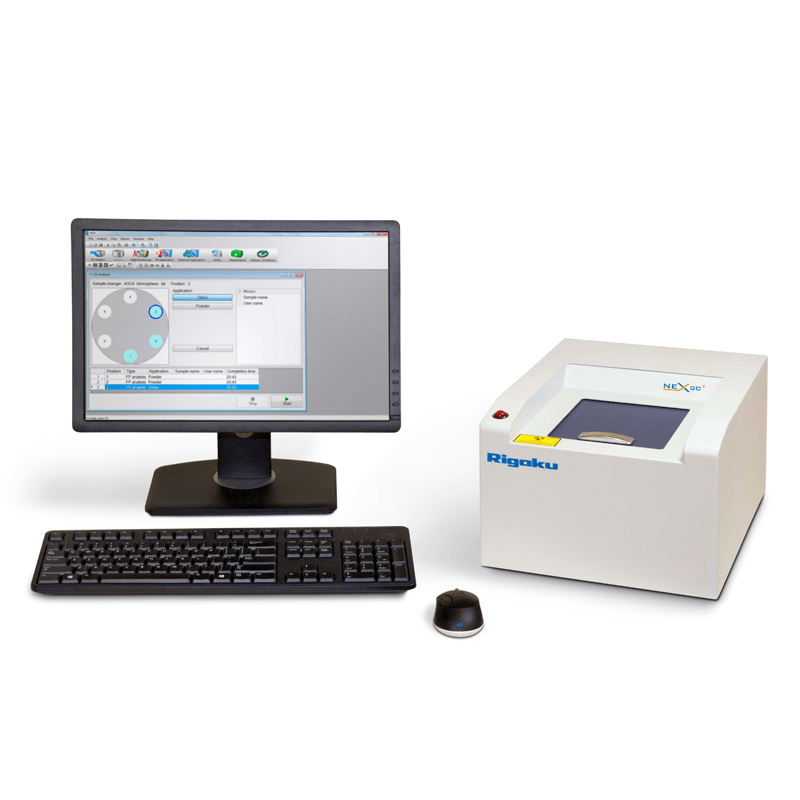

NEX QC+ QuantEZ
Take elemental analysis to the next level with powerful QuantEZ software running from an external PC. An intuitive flow-bar wizard simplifies method development, while optional RPF-SQX Fundamental Parameters software reduces the need for costly standards. SureDI option supports 21 CFR Part 11 compliance for pharmaceuticals and cosmetics.
- External PC + customizable EZ Analysis screen
- Flow-bar wizard for step-by-step method creation
- Optional RPF-SQX Fundamental Parameters
- SureDI for 21 CFR Part 11 compliance

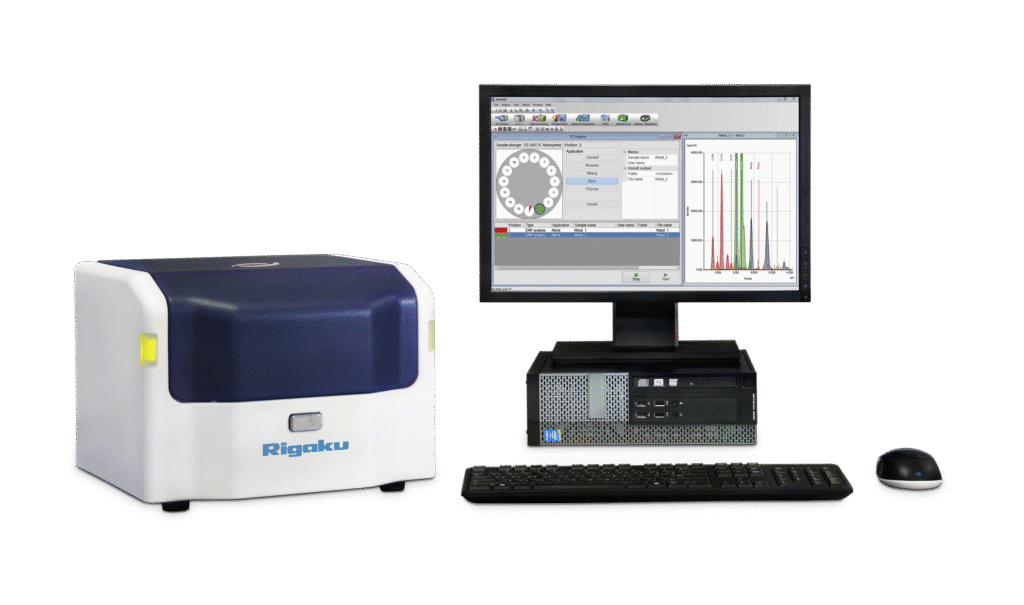

NEX DE / NEX DE VS
High-performance direct-excitation EDXRF spectrometers with a 60 kV, 12 W X-ray tube and high-performance SDD supporting >500K cps. Excellent for exploration, research, RoHS inspection, education, forensics and production monitoring. NEX DE VS adds a high-resolution camera and automated collimators for 1, 3 and 10 mm small-spot analysis of samples up to 30 cm diameter.
- 60 kV, 12 W tube + SDD >500K cps
- Low limits of detection, excellent spectral resolution
- Automatic sample changers for high throughput
- NEX DE VS: 1/3/10 mm small-spot with backlit camera

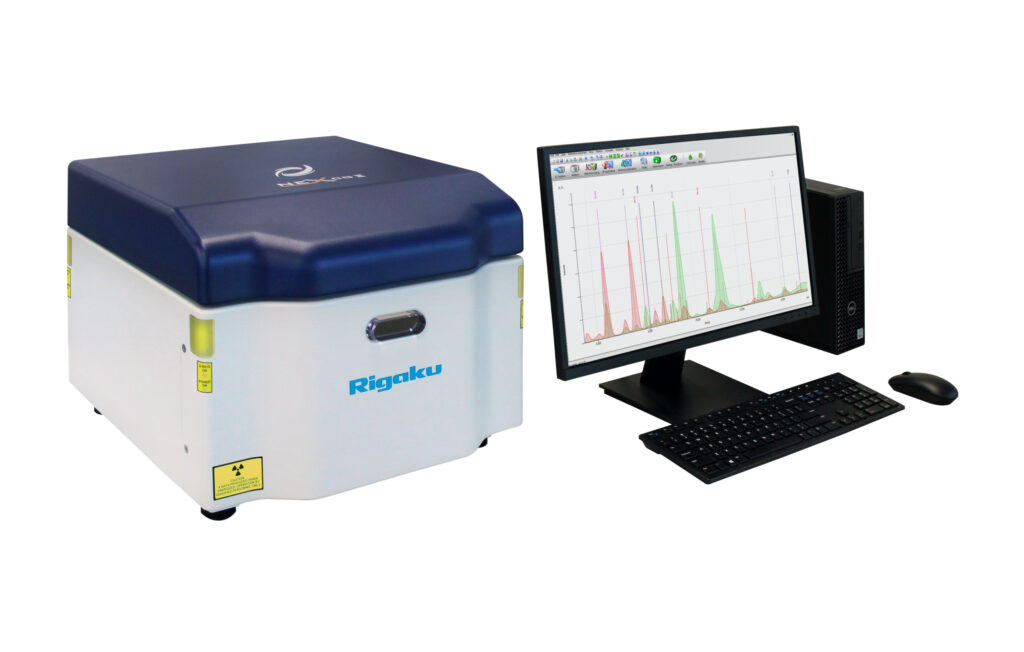

NEX CG II / NEX CG II+
Second-generation Cartesian-Geometry polarized EDXRF. With a 50 kV / 50 W (CG II) or 65 kV / 100 W (CG II+) Pd-anode tube, five secondary targets covering Na–U, and a large-area SDD — combined with Rigaku's RPF-SQX Fundamental Parameters software — these are among the most sensitive EDXRF systems on the market. Ideal for soils, feeds, oils, environmental, pharma and cosmetics.
- Pd-anode tube (50 kV/50 W or 65 kV/100 W)
- Five secondary targets covering Na–U
- Industry-leading sensitivity for trace elements
- Ideal for soils, feeds, oils, pharma & cosmetics
Need a Demo or Quote?
Talk to our application specialists about your matrix and throughput requirements.
